reactor agitator
REACTOR AGITATOR

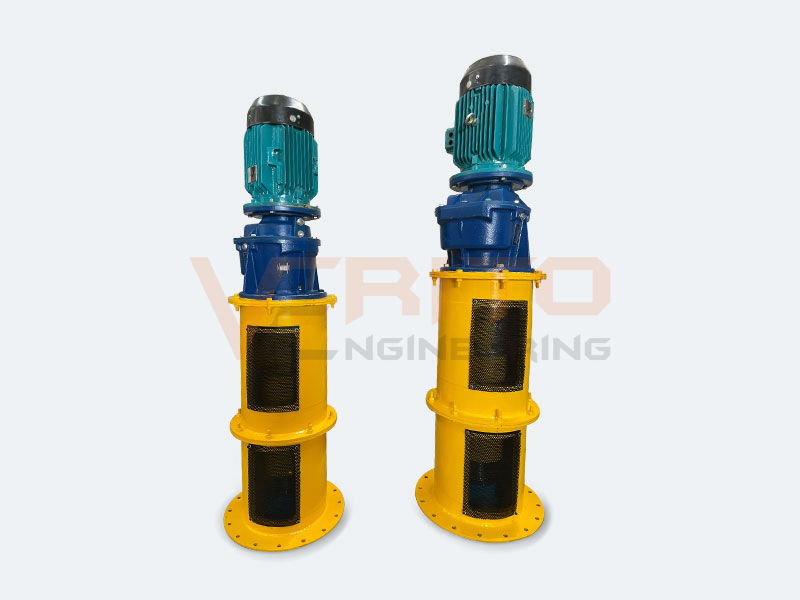

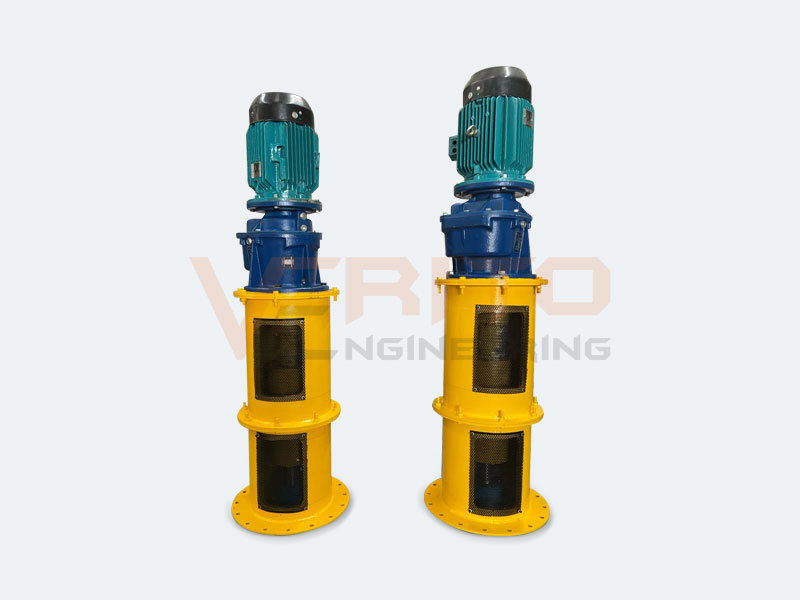

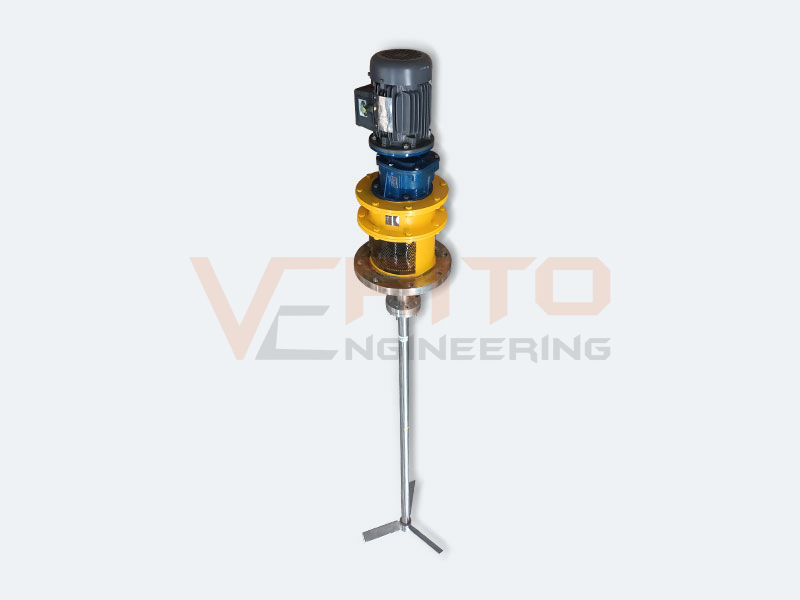

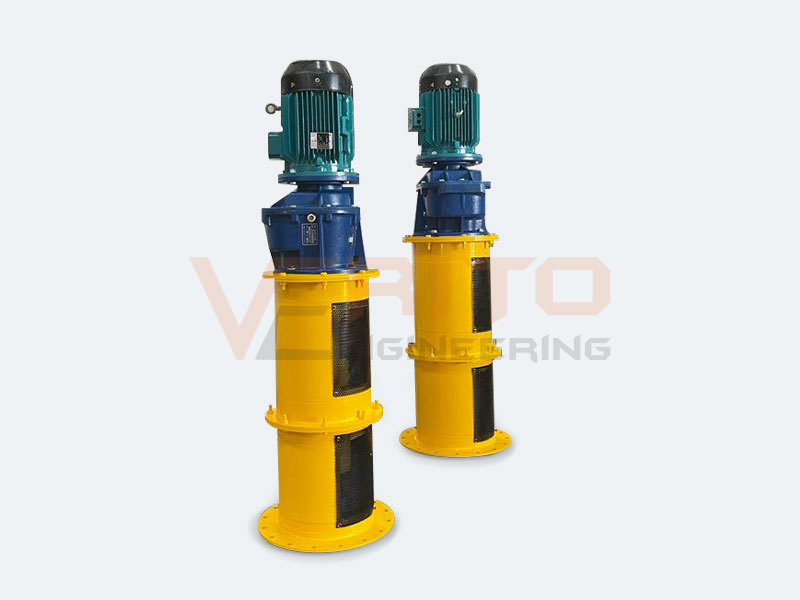

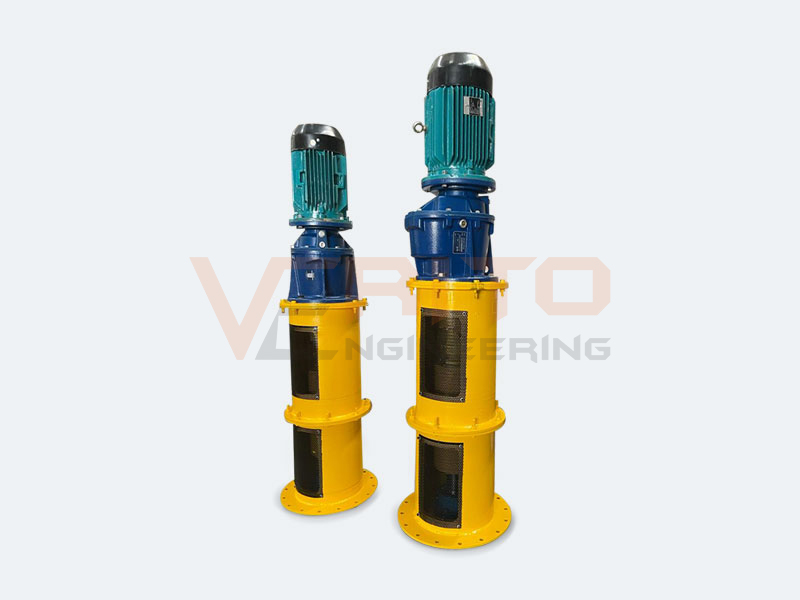

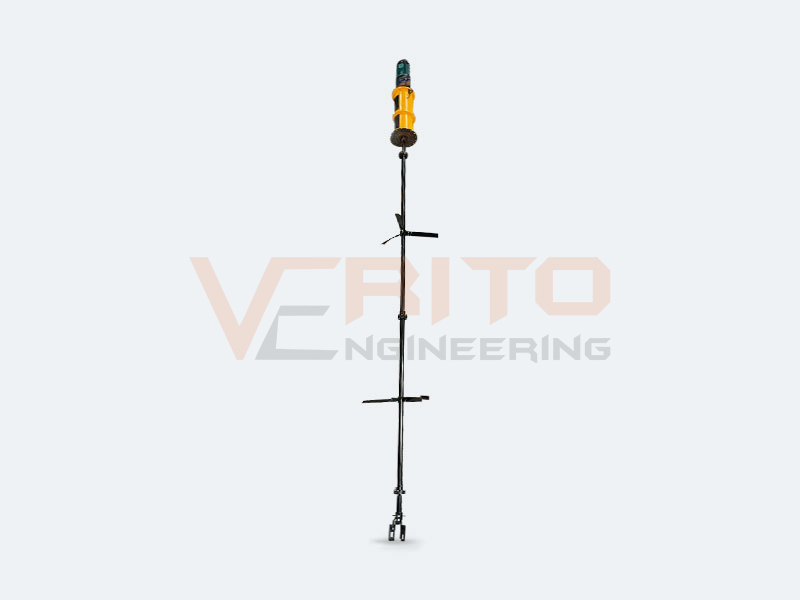

The reactor agitators are the most powerful agitators compared to the others in Verito’s product range.
These Agitator are specially designed to serves the purpose of facilitating the chemical reaction, which is carried out with precise and meticulously calculated reaction times for which vigorous stirring is required.
Since the reactors operates at high temperature and pressure for this reason, mechanical seal is often installed to maintain constant pressure or prevent the internal dangerous Liquid/gases from dispersing.
Key Technical Parameters
Motor Power | 1.5-100 kW |
Shaft Diameter | 30-300 mm |
Operating Pressure | Vacuum – 200 bar |
Impeller Type | High Efficiency Impeller, - Propeller, Hydrofoil, Alpha impeller |
Materials (Wetted Parts) | SS316, SS316L, CS, Nickel Base Alloy, Duplex & Super Duplex Steel, Titanium Alloy |
FEATURES
- Robust designs of lantern support available.
- Available with different types of gearbox (Inline Helical, Planetary, Bevel)
