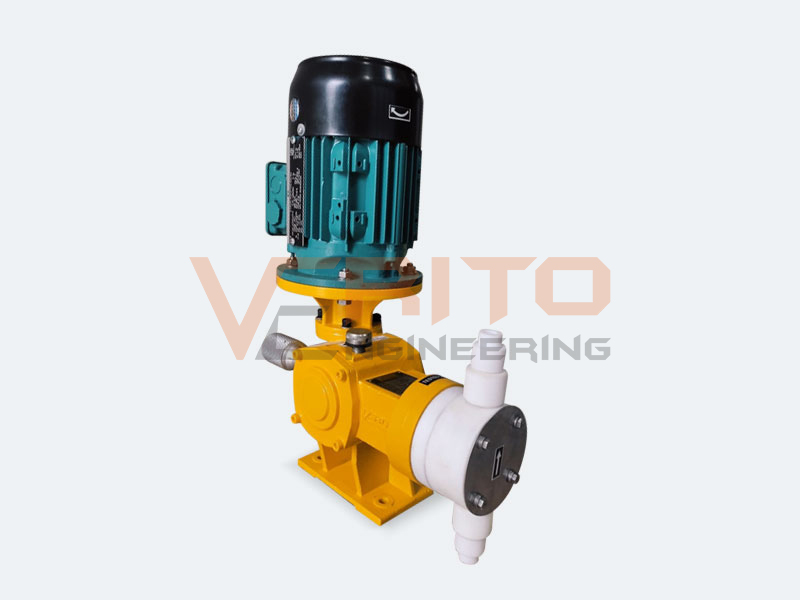

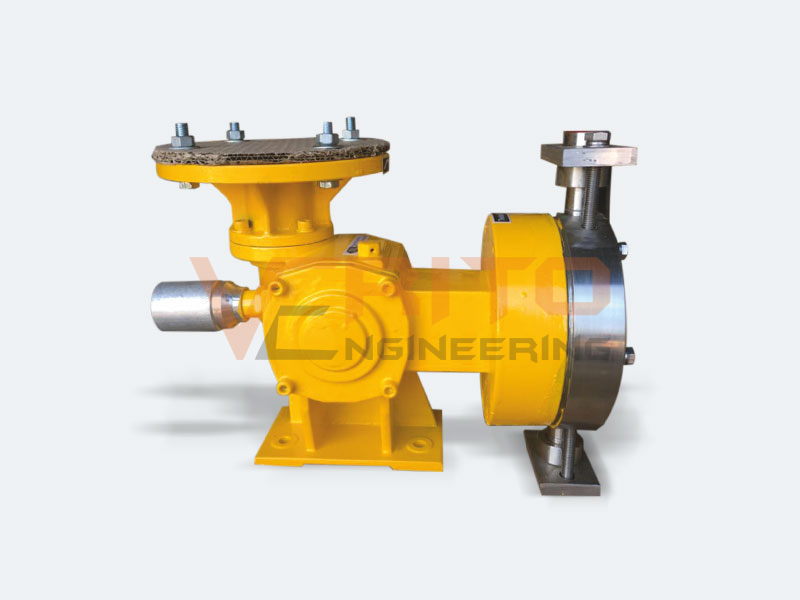

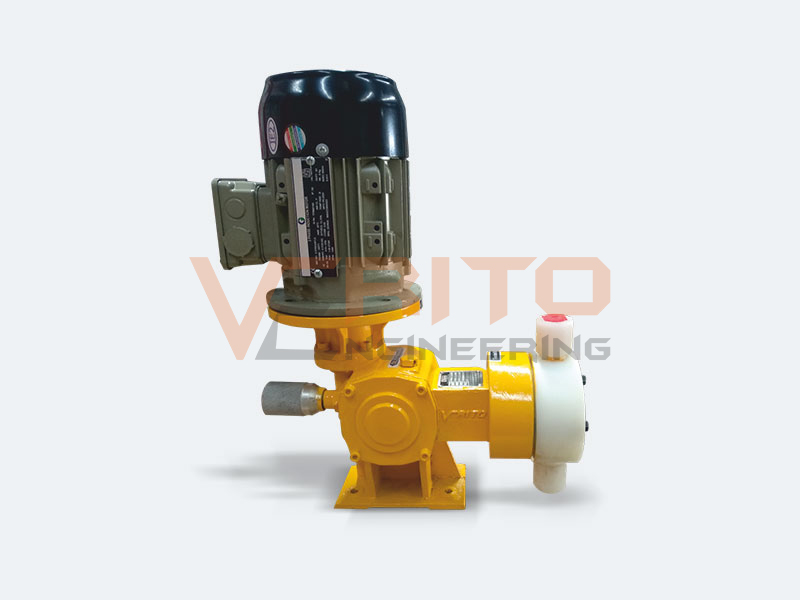

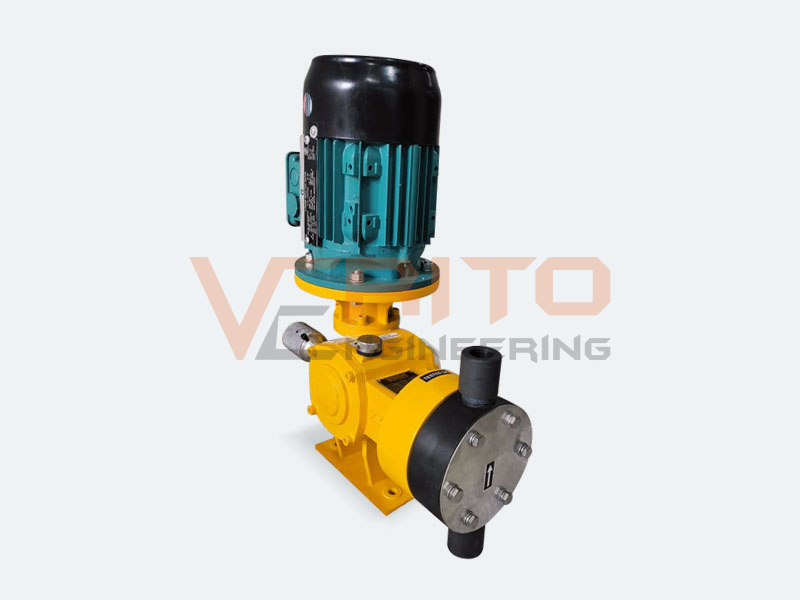

Mechanical Actuated Diaphragm Metering Pump
MECHANICAL ACTUATED DIAPHRAGM METERING PUMP
A robust & Compact design of Mechanical Actuated Diaphragm Metering Pump is best suitable for metering and pumping tasks in the low-pressure range.
FEATURES
- Very economical.
- PTFE Diaphragm.
- Remote control foulin is available.
- Easy to operate.
- Less maintenance.
CAPACITY RANGE
- 0 to 1000 L/hr in simplex designs Higher capacities can be achieved by multiplexing head.
PRESSURE RANGE
- 0-10 kg/ cm2 in Standard Version.
WETTED PART
- SS 304, SS 316, SS 316L, PP, PTFE (Teflon), PVC, Alloy – 20 Haste Alloy 'C'
(Dosing Liquid Contact Parts)
TEMPERATURE RANGE
- 30 Degree Celsius to 300 Degree Celsius.
MD SERIES – NON LEACKAGE PUMP STANDARD MODELS
| No | Model | Capacity | Max Pressure |
|---|---|---|---|
| 1 | VMD - O1 | 0 to 100 | 8 |
| 2 | VMD - O2 | 0 to 500 | 8 |
| 3 | VMD - O3 | 0 to 1000 | 8 |
