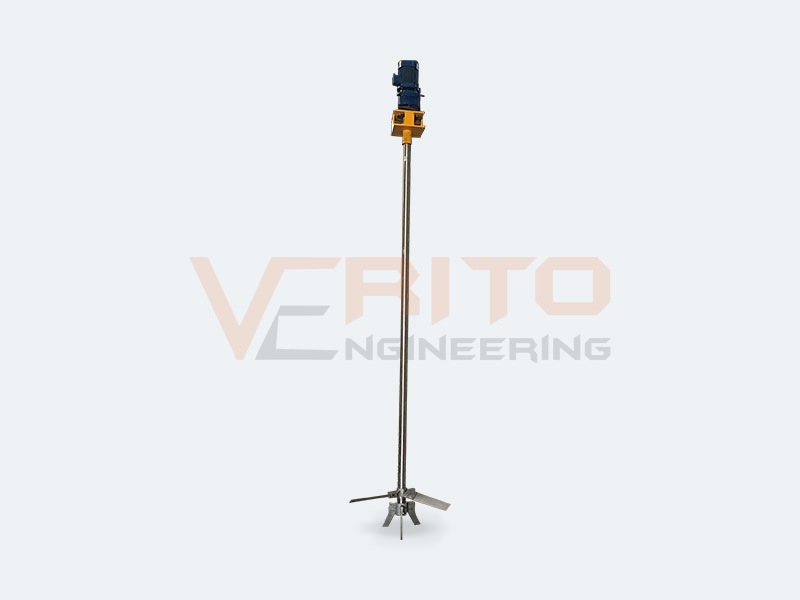

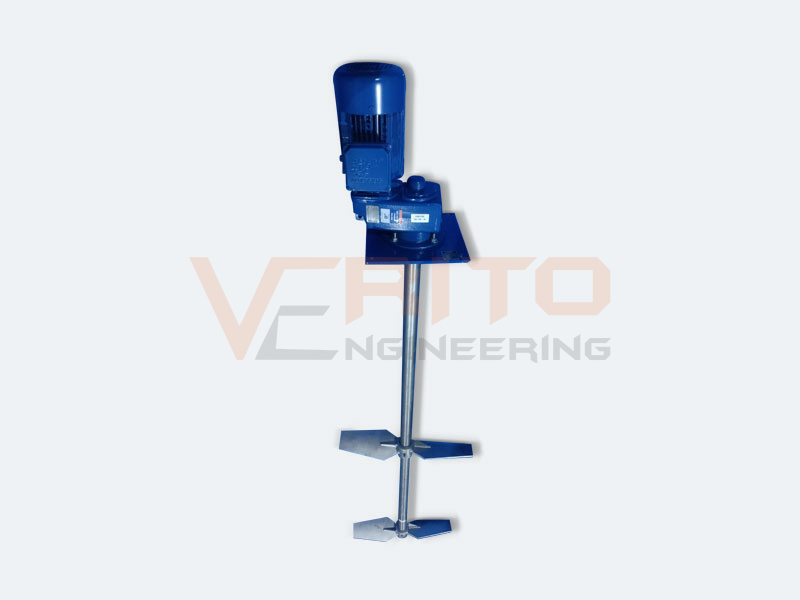

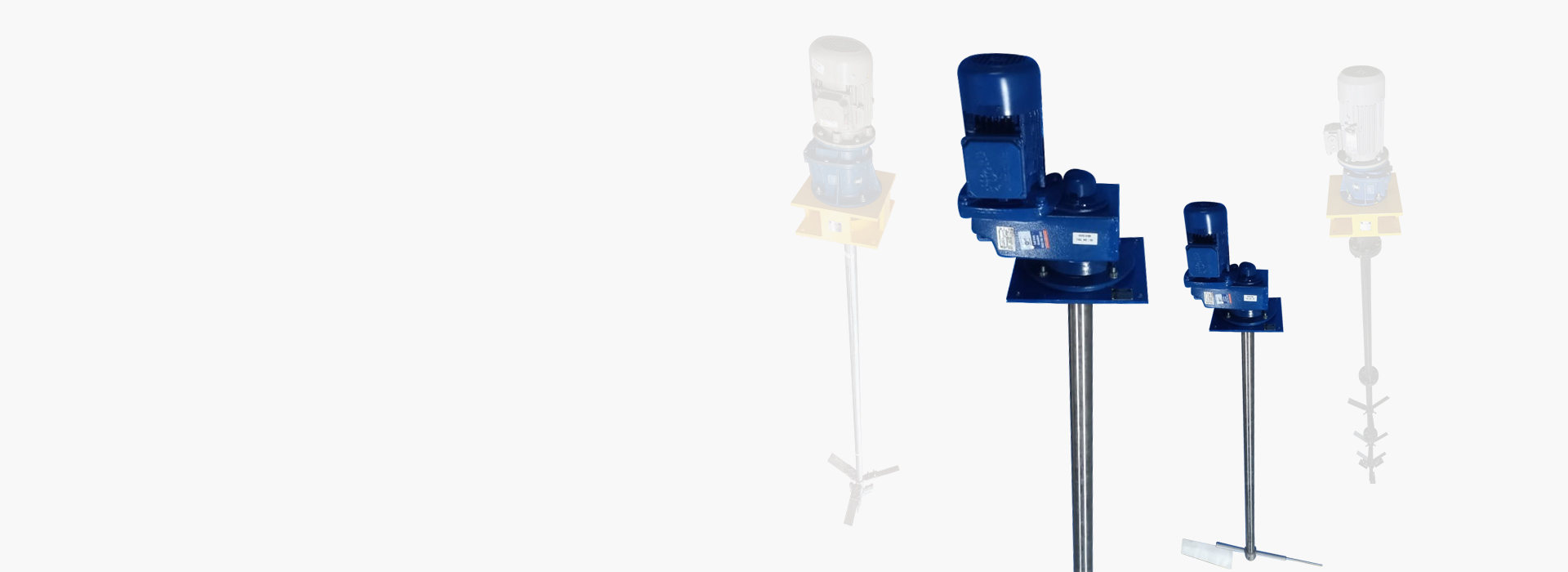

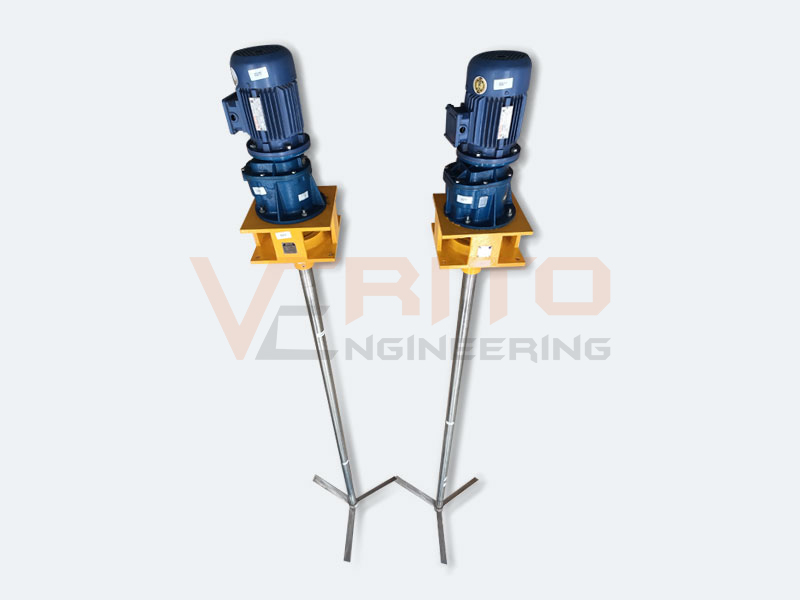

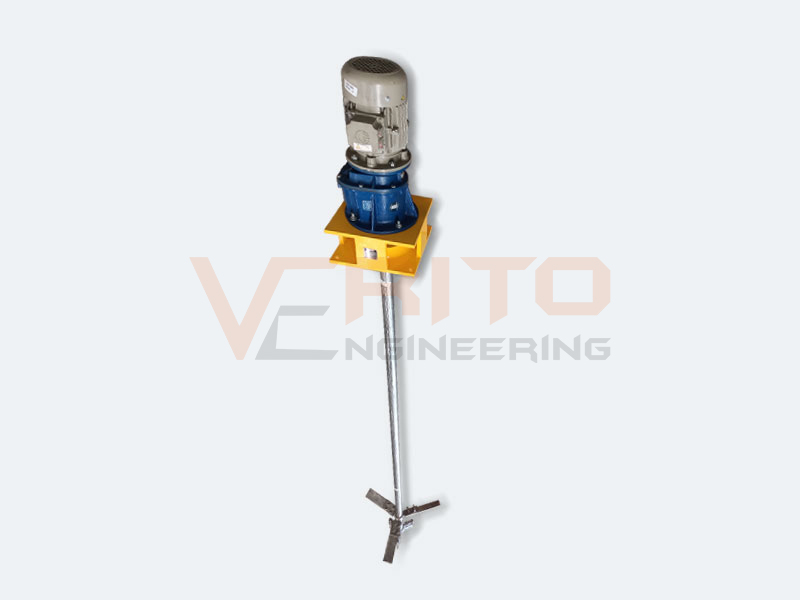

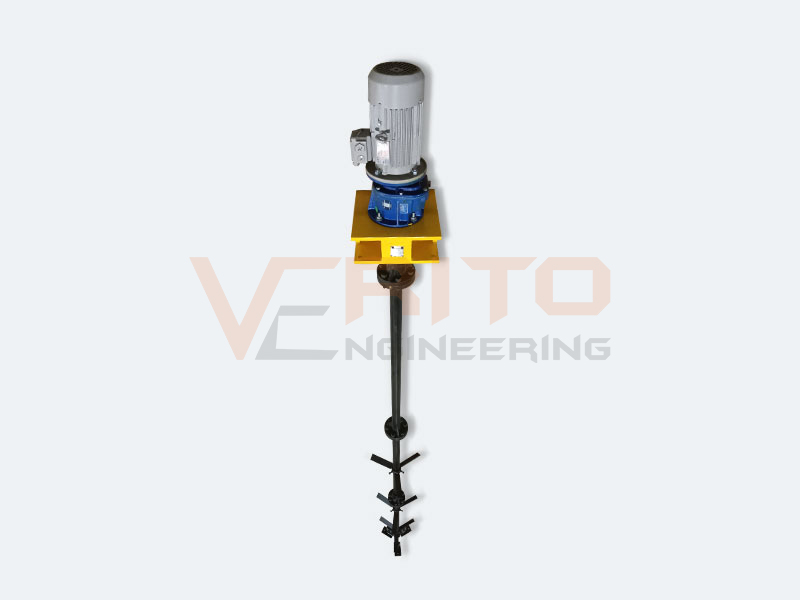

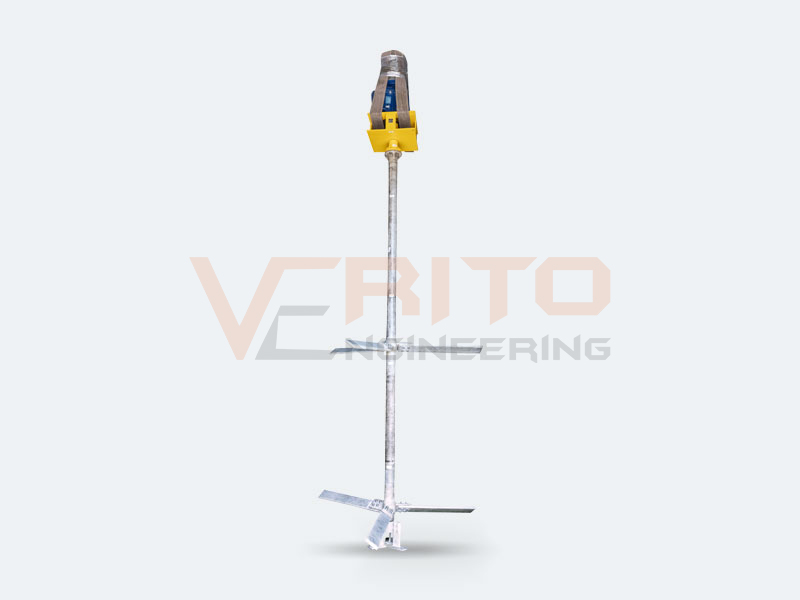

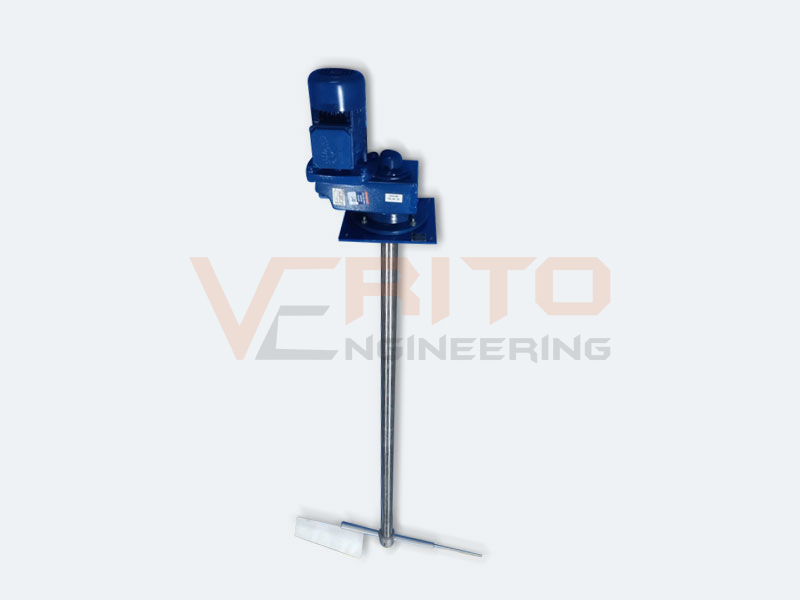

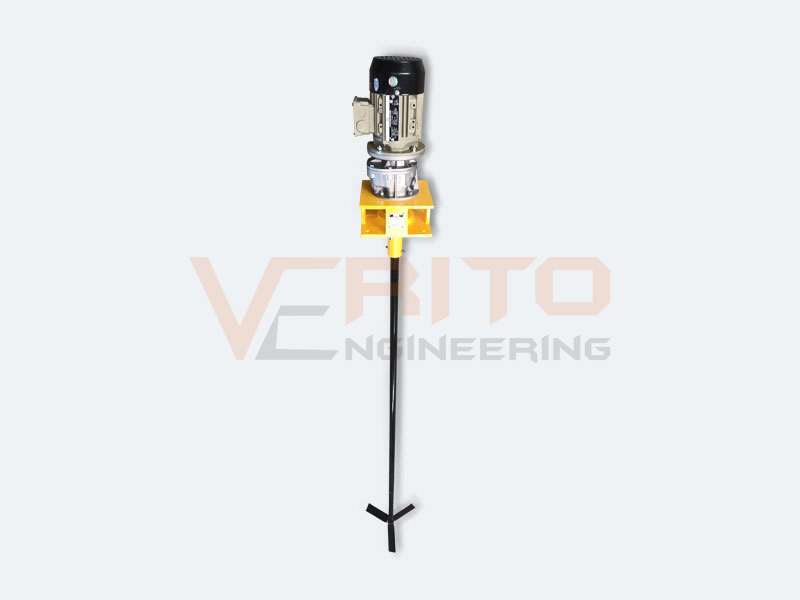

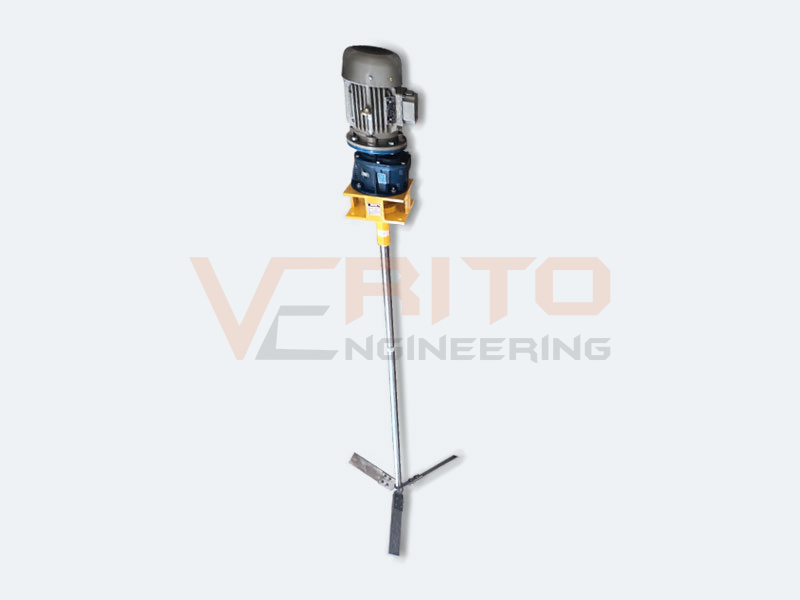

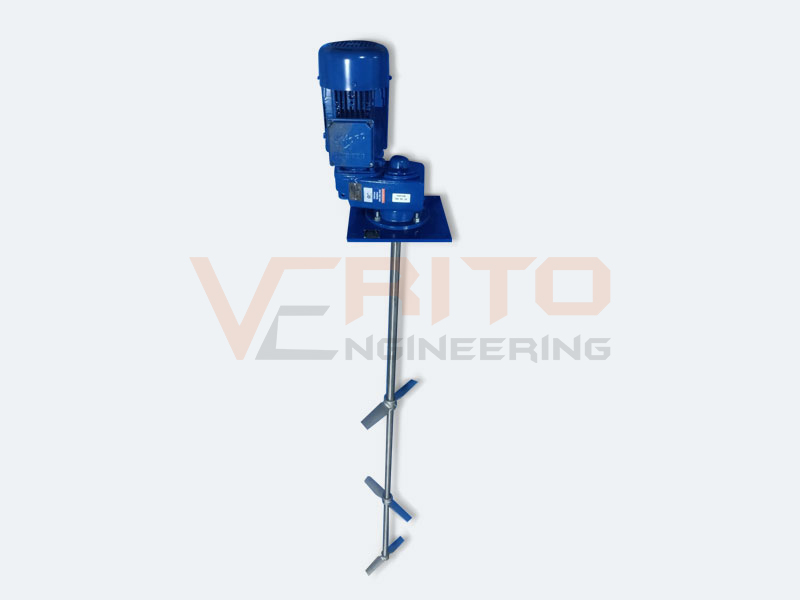

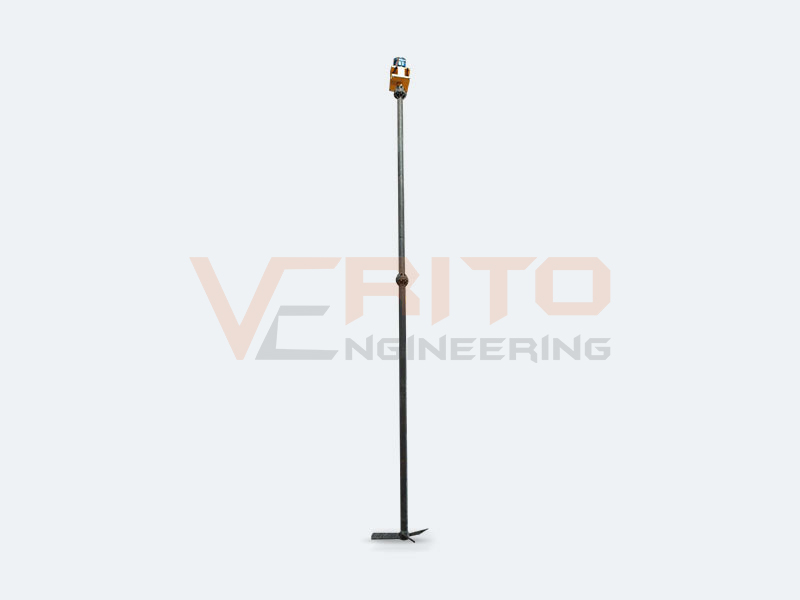

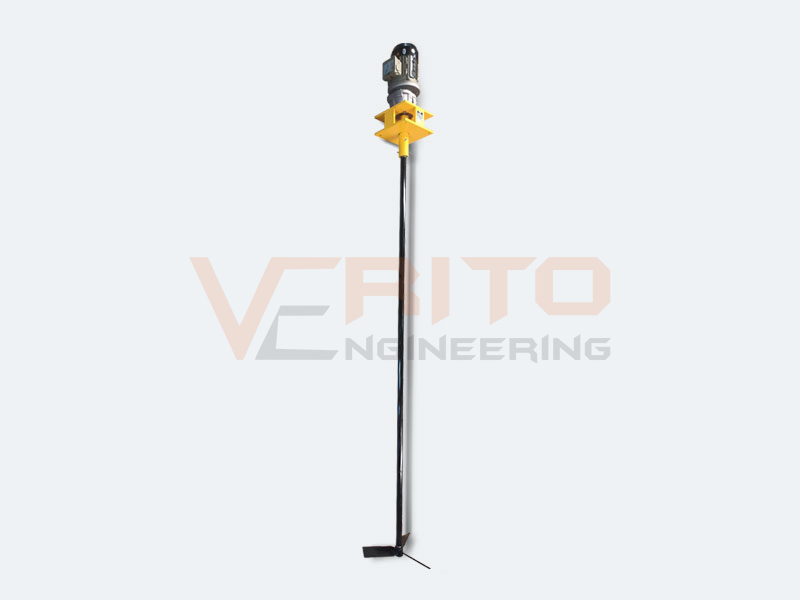

HEAVY DUTY AGITATORS
Heavy Duty Agitators are designed for large volume Vessels which are reliable for most demanding heavy industrial applications, from pharmaceutical fermentation, hydrogenation, bio digesters, chemical reactors, resins, large-scale chemical processing to minerals processing and heavy sludge waste treatment.
Radial and axial loads on the drive are completely absorbed by a separate double bearing section and the flexible coupling connecting the mixer shaft to the drive. These Heavy Duty Industrial mixer has a rigid torsion-free Bearing housing.
This robust construction and the precision of its running characteristics guarantee the durability of the shaft.
Key Technical Parameters
| Motor Power | 10-200 kW |
| Shaft Diameter | 60-300 mm |
| Operating Pressure | 0 – 50 bar |
| Impeller Type | Turbine, Propeller, Hydrofoil |
| Materials (Wetted Parts) | MS, EN-8, SS304, SS316, SS316L, Nickel Base Alloy, Duplex & Super Duplex Steel, (Comes with Various Lining RL, FRP, PP, PTFE) |
FEATURES
- Robust torsion-free designs of lantern support available.
- Available with different types of gearbox (Inline Helical, Planetary, Bevel)
