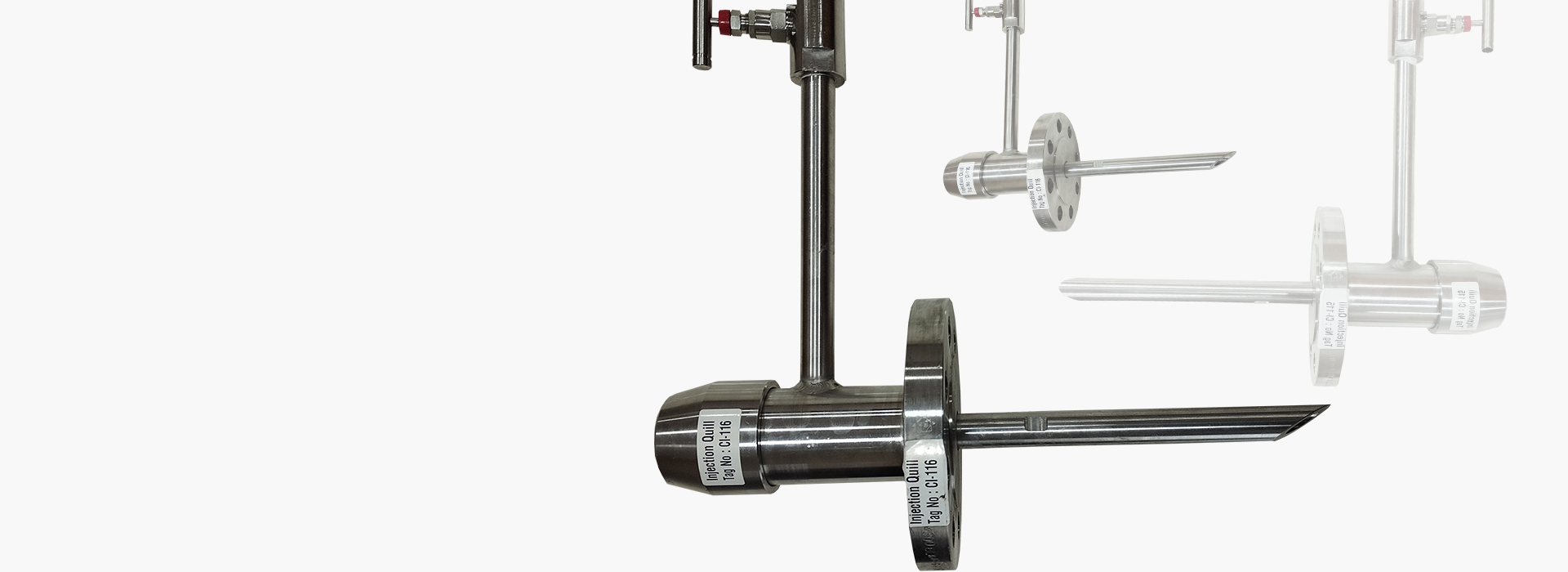

High Pressure Injectors

High Pressure Injectors

High-pressure injectors are also known as high-pressure access fittings, are available with different styles, connection types and lengths.

FEATURES

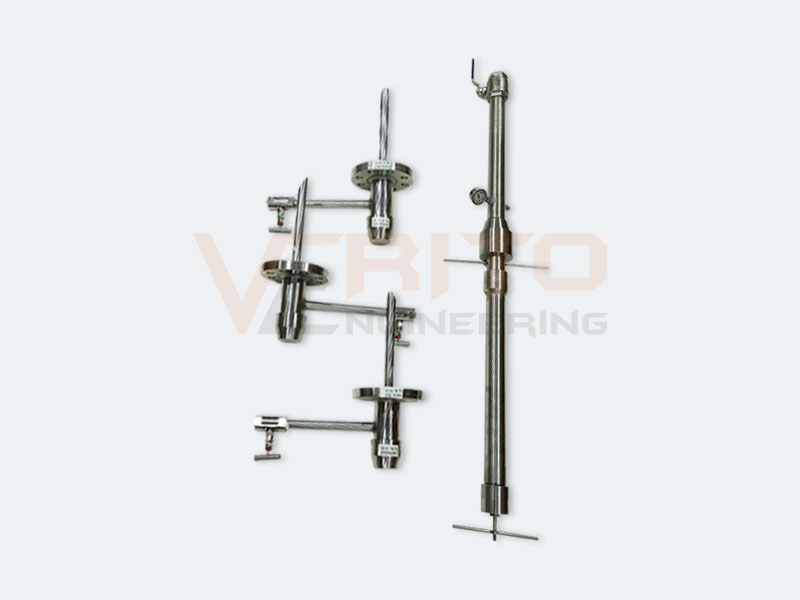

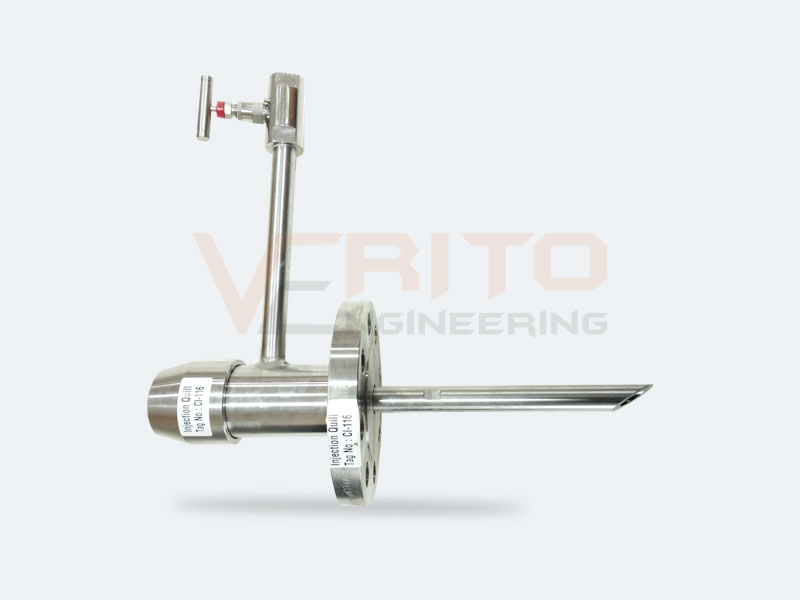

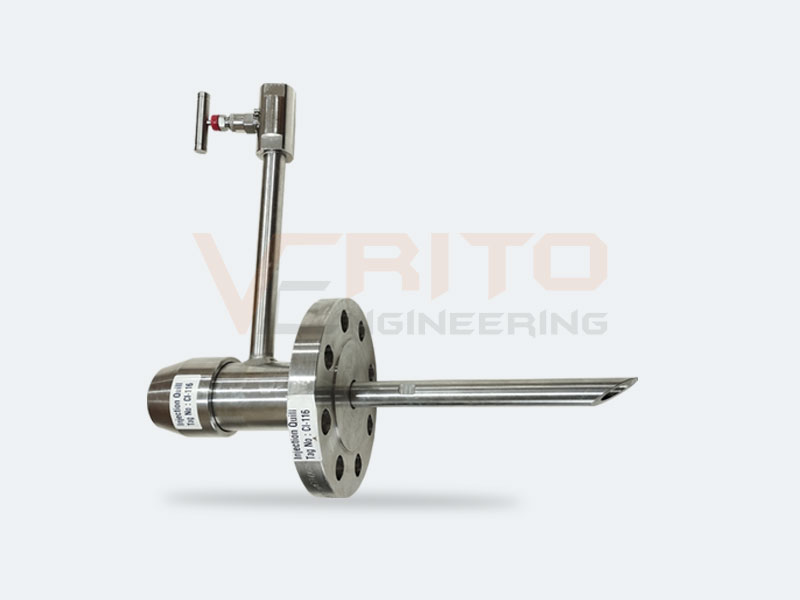

  • Style: Inline injector, 90° injector, Quill
  • Connections to process pipe: 2" NPS flange, weld, threaded connections
  • Side tee connections 1/4" to 1" NPS flange, weld or threaded connections for mating to injection/sampling line
  • Up to 3/4" NPS flanged connection for quills, inline nozzles, 90° nozzles
  • Lengths up to 105 cm to fit a wide range of pipeline sizes
  • Temperature range: -18°C to 204°C
  • Materials: carbon steel, stainless steel, high-nickel alloys
  • Code compliant: ASME®, code B31.3, NACE-MR0175, CRN, PED

Application

  • Chemical injection is used in many application such as injecting additives, chemical/bio treatment, and removal/separation process. Below are few examples of chemicals used in the oil/gas injection process
  • Methanol
  • Corrosion inhibitor
  • H2S scavenger
