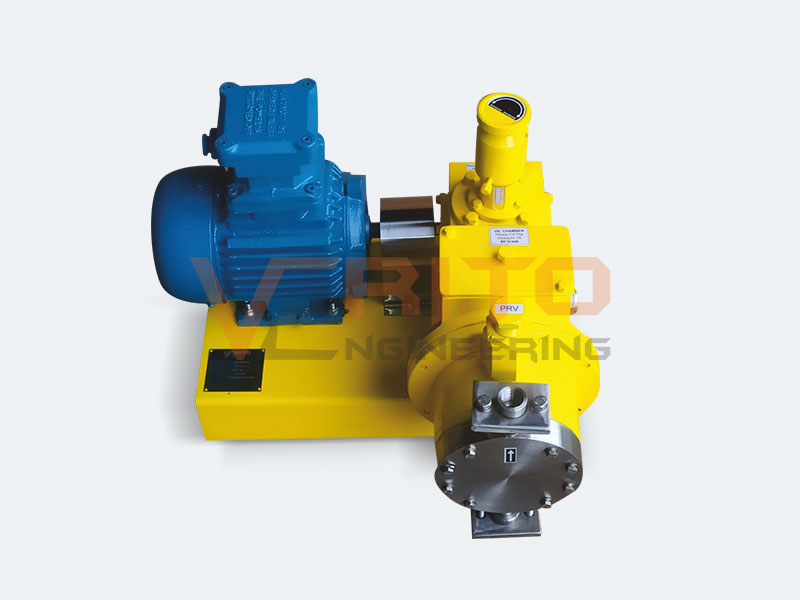

Hydraulic Diaphragm Metering Pump
Hydraulic Diaphragm Metering Pump
Verito Engineering Hydraulic Diaphragm Metering Pump an extremely robust Conforms to API 675 standard. It meets with the strictest safety requirements and offers a very high degree of flexibility in wide areas of application.
FLOW RATE
- 0 to 7,000 litres per hour. Higher capacity can be achieved by multiplexing head.
PRESSURE RANGE
- Stainless steel head standard pressure up to 300 kg/cm2. Special head up to 1000kg/cm2.
FEATURES
- Leak free design.
- All moving parts including plunger is running in oil.
- Diaphragm rupture detection system available.
- High metering accuracy.
- In built pressure relief valve in hydraulic circuit.
- Diaphragm life more than 20000 working hours.

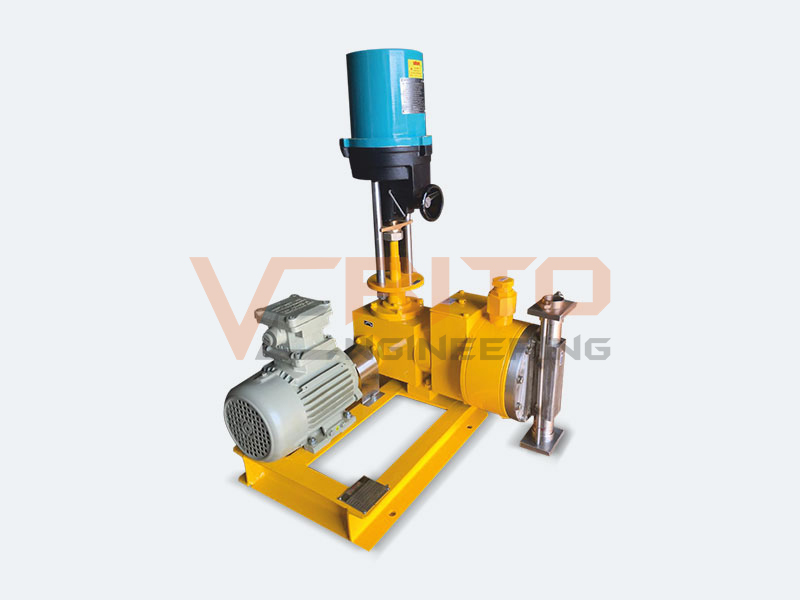

- Automatic capacity control via pneumatic or electric signal on demand
- Steady state metering accuracy (+ - 1%) of pump output.
APPLICATION
- Simplex Hydraulic Diaphragm Pumps
- Double Hydraulic Diaphragm Pumps
- Duplex Hydraulic Diaphragm Pumps
Versatile and suitable for any liquid including toxic and hazardous.
TECHNICAL SPECIFICATION
| No | Pump Model | Capacity(L.P.H.) | Max Pressure |
|---|---|---|---|
| No | Pump Model | Capacity(L.P.H.) | Max Pressure |
| 1 | VHYD - O1 | 0 to 152 | 80 |
| 2 | VHYD - O2 | 0 to 761 | 99 |
| 3 | VHYD - O3 | 0 to 3000 | 250 |
| 4 | VHYD - O4 | 0 to 6000 | 300 |
