VERITO ENGINEERING

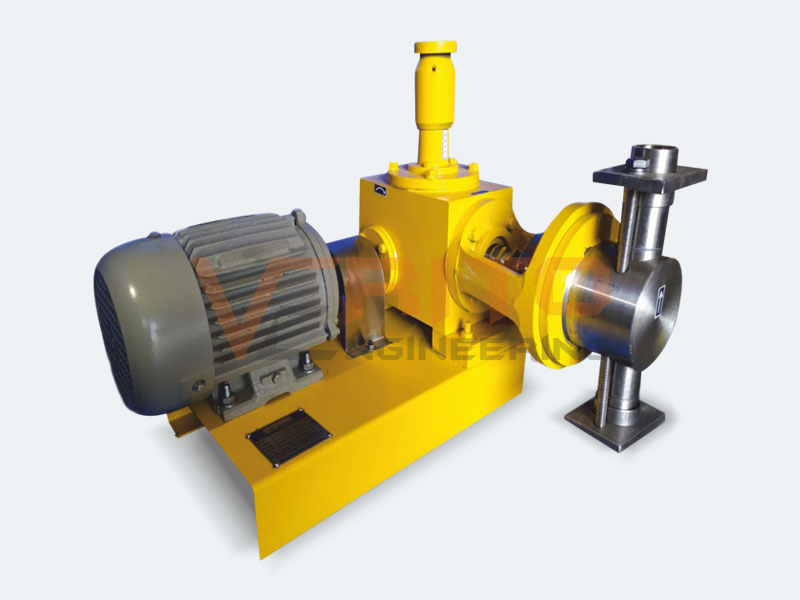

Plunger Metering Pump
Plunger Metering Pump
Verito Engineering Plunger Metering Pump Conforms to API 675 standard. It comes in a variety of models and is used by well-known customers for a variety of processes.
FLOW RATE
- Flow rate - 0 to 7000 LPH, Higher capacity can be achieved by multiplexing head.
PRESSURE RANGE
- Stainless steel head standard pressure up to 300 kg/cm2.Special head up to 1000kg/cm2.
FEATURES
- Heavy duty construction designed for several industrial environment.
- High volumetric efficiency.
- High metering accuracy.
- Automatic capacity control via pneumatic or electric signal on demand or through VFD (Variable Frequency Drive).
- Low investment cost.
- Internal worm reduction gear.
- Oil bath lubrication for long life.
- Micrometric stroke adjustment while pump running or stopped.
- It requires low NPSH.
- Steady state metering accuracy (+ - 1%) of pump output.
- Simple & multiplex arrangement of pumps.
FEATURES
| No | Pump Model | Capacity(L.P.H.) | Max Pressure |
|---|---|---|---|
| 1 | VPL - O1 | 0 to 152 | 80 |
| 2 | VPL - O2 | 0 to 761 | 99 |
| 3 | VPL - O3 | 3 to 3000 | 230 |
| 4 | VPL - O4 | 0 to 7000 | 400 |
TECHNICAL SPECIFICATION
