Electronic Metering Pump

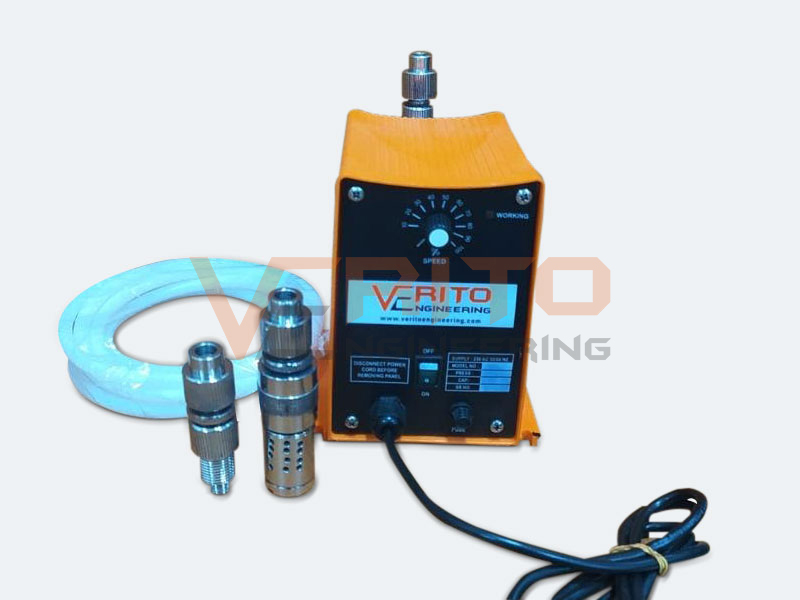

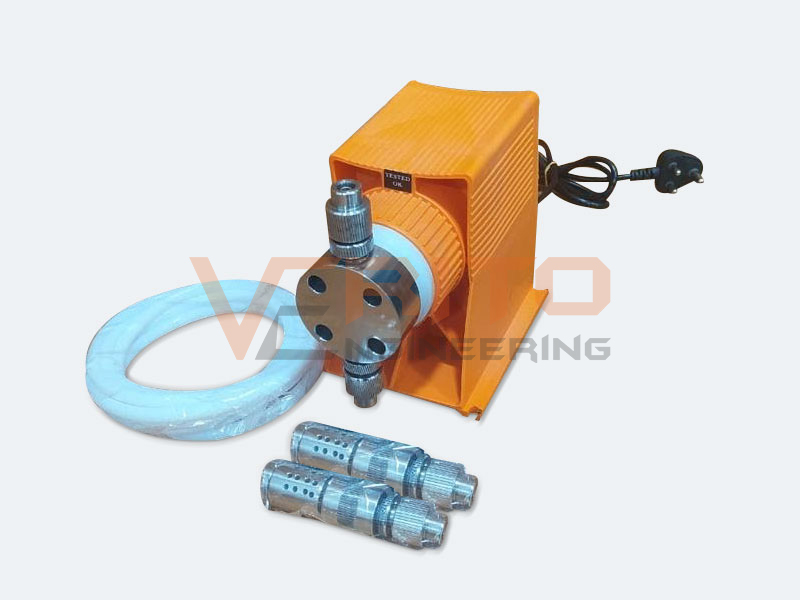

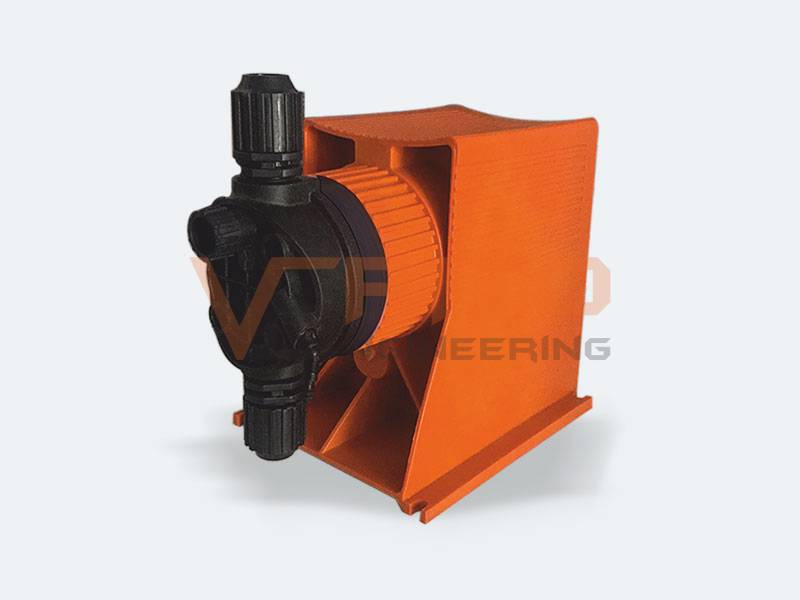

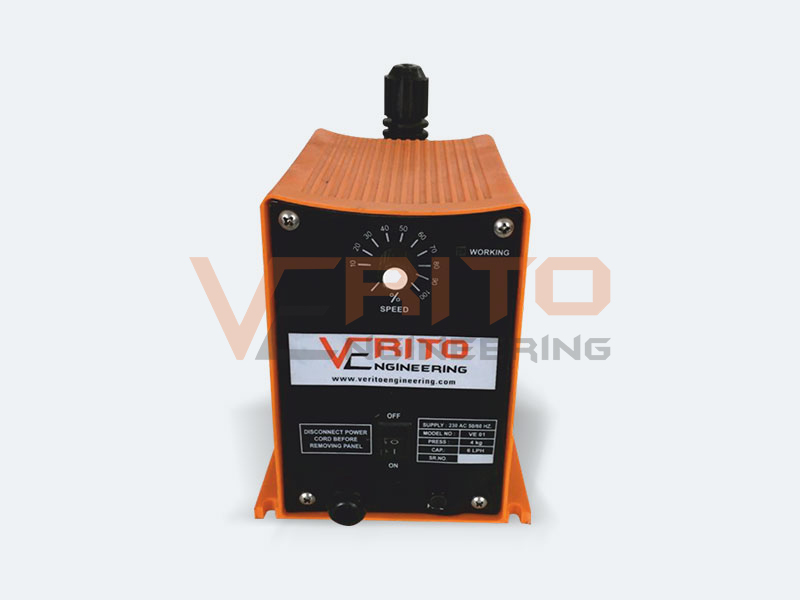

ELECTRONIC METERING PUMP
A versatile solenoid-driven Metering Pump are used to dispense or inject accurate volumes of fluid into a process. Compact, Cost-Effective, adaptable to receive signal for auto-flow.
DIAPHRAGM
- Superior diaphragm is designed to ensure to long life even under the most demanding applications. We are using imported quality Solid PTFE diaphragm.
ELECTRONIC CIRCUIT
- State of the art electronic circuit (protectively coated with epoxy) is virtually unaffected by temperature,magnetic fields & other electric disturbances.
MOC

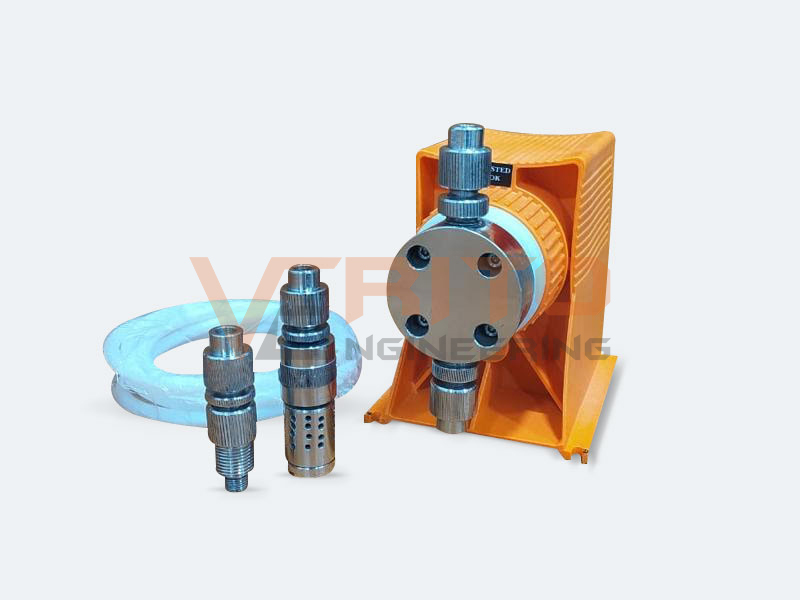

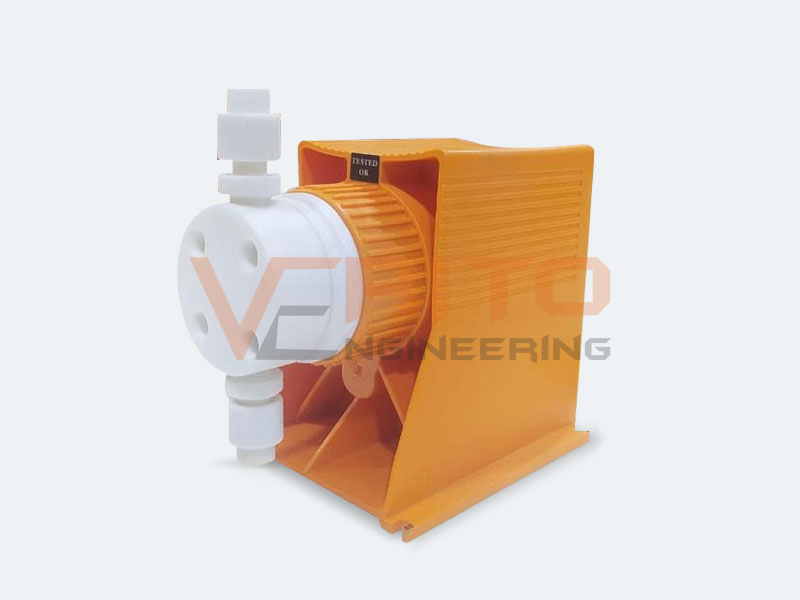

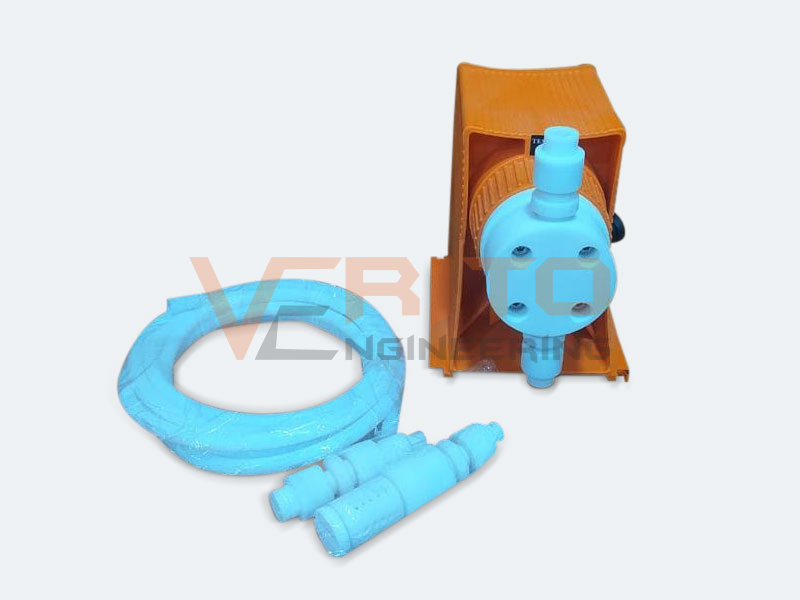

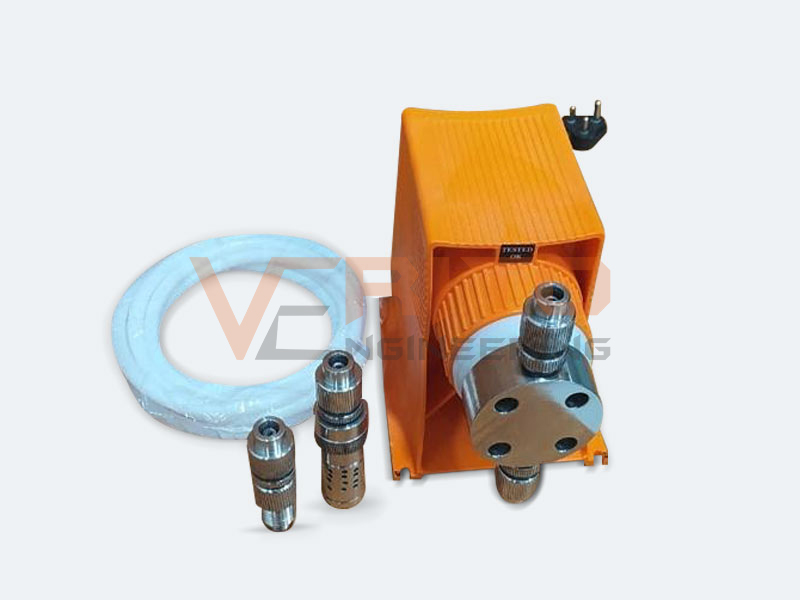

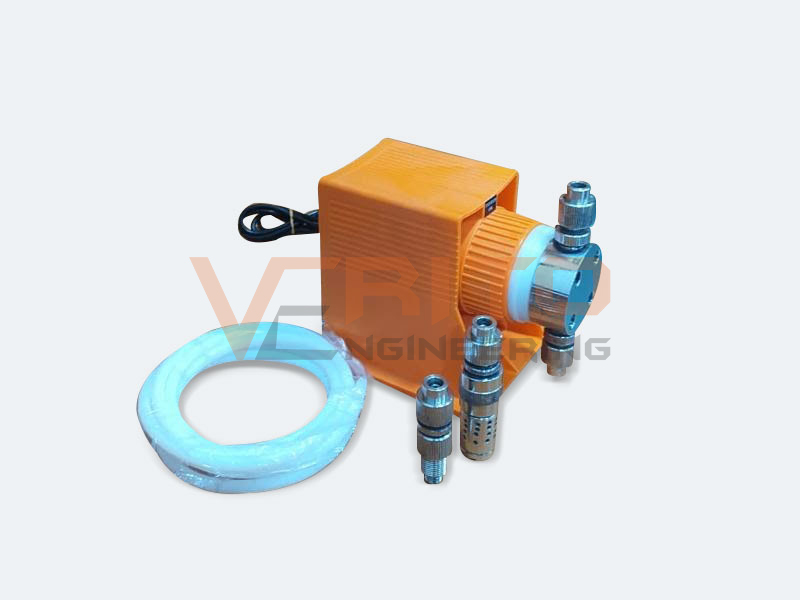

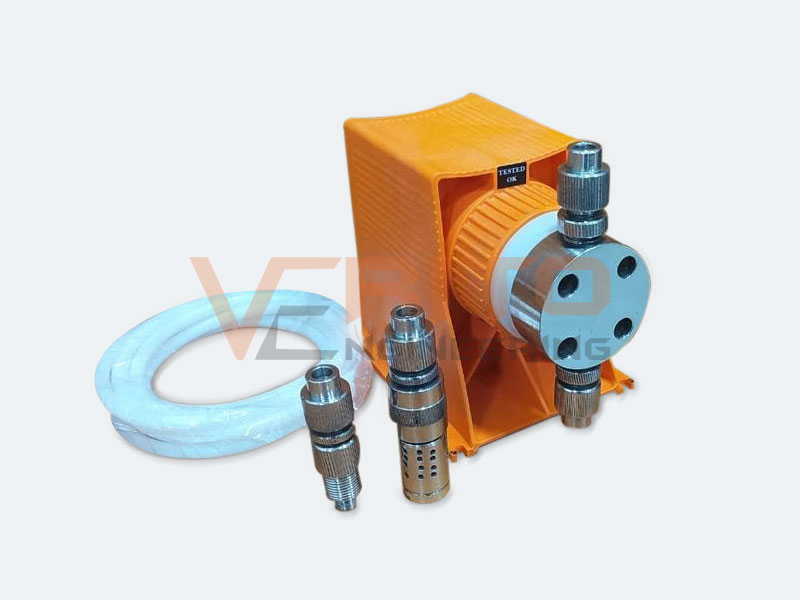

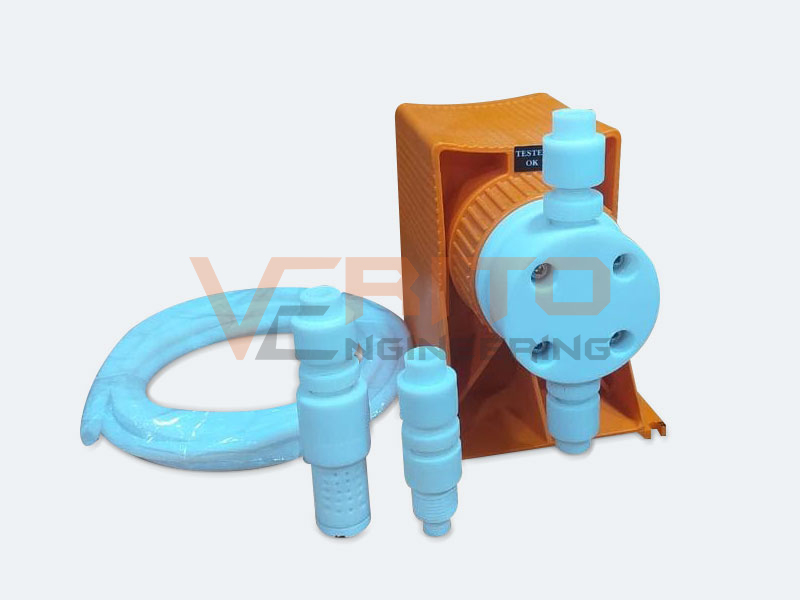

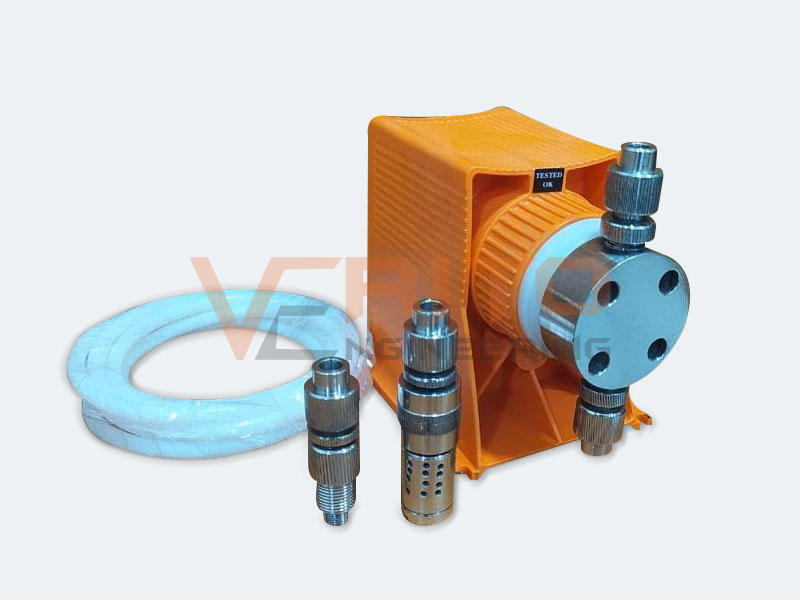

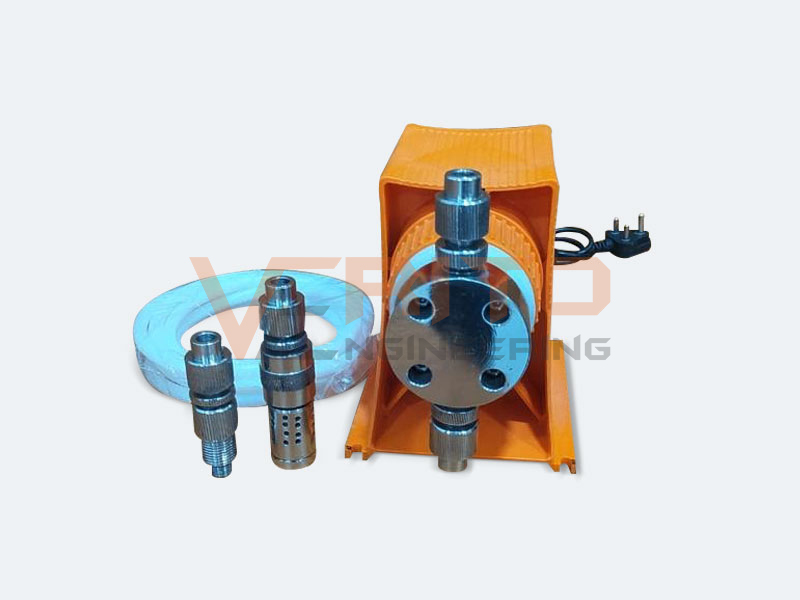

- PP, PVDF, PTFE & SS316, Alloy20
SALIENT FEATURES
- Maintenance free
- Easy to operate
- Economical
- World class next generation Dosing Pumps
- Inbuilt Air Relief Valve
- Solid PTFE Diaphragm
- Double NRV Check Valves
- Less noise
- Minimum SPM

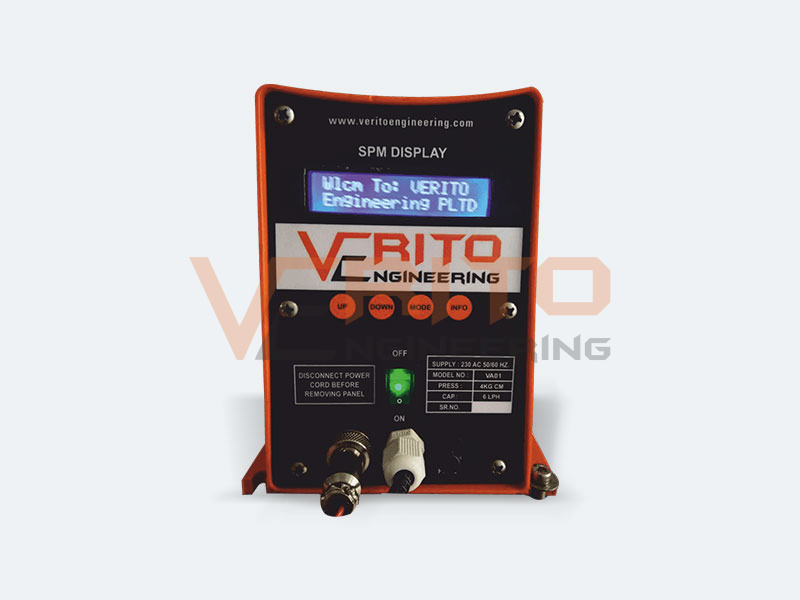

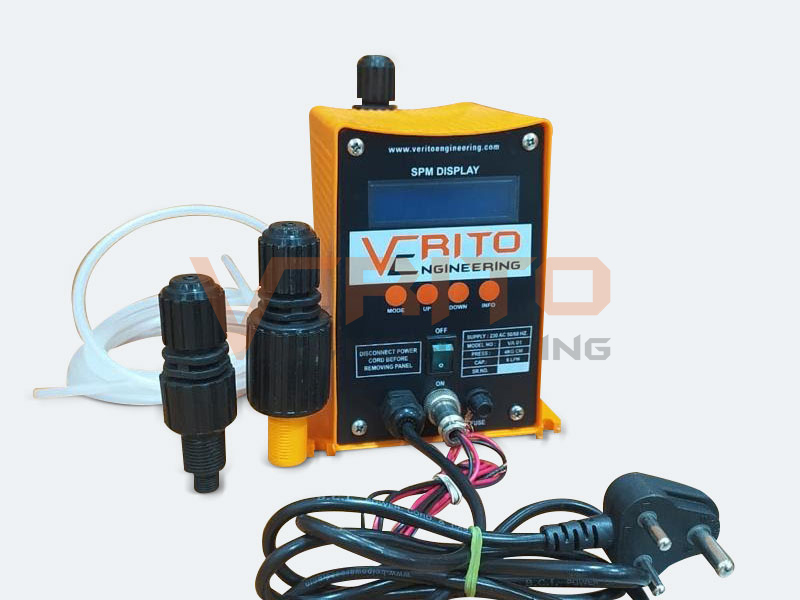

- Optionally Digital display of SPM available
SOLENOID
- High quality, hot rated solenoid is designed to dissipate heat. Capacities & pressure do not derate even over extended use.
TECHNICAL SPECIFICATION
- Power Supply 230v AC, 50Hz
- Power consumption at max. speed 40 Watt
- Fuse 500mA / 230v Ac
- Pump stroke per minute {adjustable} 120 Max
- Negative Suction 1 Mtr
- environment temperature 40'C Max
- Capacity Max 50 Lph
- Pressure Minimum 13 Kg
No | Technical Specification | Capacity |
---|---|---|
1 | Power Supply | 230v AC, 50Hz |
2 | Power consumption at max. speed | 40 Watta |
3 | Fuse | 500mA / 230v Ac |
4 | Pump stroke per minute {adjustable} | 120 Max |
5 | Negative Suction | 1 Mtr |
6 | Environment Temperature | 40'C Max |
7 | Capacity Max | 50 Lph |
8 | Pressure Max | 17 Kg |
